A square (not shown) is used to make sure your pipe is at a correct right angle. Its also useful to know how to bend a metal pipe at home. To make a bend in classic mandrel pipe and tube bending, a bend die manufactured for a specified radius is needed. (Use a black laundry marker on aluminum tubes and a silver lead pencil on steel tubes.). You can then take advantage of the leverage it affords (you know the principle). 8 years ago on Introduction, 9 years ago It should allow you to make simple bends with a high degree of success provided it can accommodate the diameter of the tubing you need to bend. Making a Right Angle Bend (Method 2). I am in the process of making a Bicycle trailer and needed to bend some conduit. wikihow curvar Unlike steel, aluminum is a more tender metal and so it might seem logical to think that bending it is simpler, but it doesnt work that way. I have not bent any tubing as of yet. I form the coil on a mold I had turned on a machine lathe. Without a Pipe Bender, Heres How to Bend Pipe. Youll need to anneal anything tougher than 5054 aluminum by heating it along the bend line. Depending on the temper you are using other important tempers include T6, T4 and T1 aluminium tubes will respond differently to bending. Where can I purchase 1/2" O.D. to get to this level of understanding, and has not been without some problems. Thanks to the experience of our engineers at Tecnocurve, this bending equipment is designed and produced directly in-house. References. These welded tube aircraft are ordinarily endowed with nicely curved tail surfaces made of small diameter steel tubing.

7 x D is the minimum roll bending radius. The metal will EASILY bend at this stage, but it will not fracture or shatter, and it is not yet at the melting point. on Introduction, Reply . ). A substitute for the vise would be a good solid immobilized bench to which you could bolt a bending device horizontally. Can't see buying a conduit bender to use only once..Thanks for this info..Chief Redelk. You may not be able to bend the metal at all depending on its thickness. Most any bending device you use, with the exception of a template-like bending jig, will have a rather small diameter grooved pulley, roller or disc over which the tube will be bent. When rectangular tube is bent the hard way, the material frequently exhibits less deformation (see Figure 2). Learn more Aluminum pipe is much easier to bend than aluminum tubing, due to the greater wall thickness, since it is less likely to collapse or deform when you bend it. Tubing in aircraft work is usually bent cold. Aluminum tubing is not only used for fuel lines, it is also used for windshield and canopy bows and wing tip bows, too. pipes bend bends The bigger the difference between the sides of the tube (for example, a 16-by-4-inch piece has a greater difference than a 12-by-4-inch section) the easier it is to bend. Templates cut from plywood. Then you would place it over some hard curved surface and push down hard on both ends of the tube .

I have some 1/2 inch aluminum tubing that I want to put some "U" bends in. bender kinking collapsing More About The Bending Process You cannot hurry your tube bending chore. The EAA website is currently undergoing maintenance. attempting The pressure die and wiping die are made of aluminum or bronze and are used to maintain the work pieces shape and surface as it glides past. In other words, it is possible to make bends over a smaller radius if you anneal the tube once or twice as the bend progresses. The risk of a flattened bend will have been considerably reduced. or would it kink?

Cookies are required for this site to operate correctly.

Thats how to do brass, but, not for very small radius. Pat, if you try nylon line, lube it really well, since it can be a booger to pull out! If warpage is present, a twisting pressure in the proper direction will take out the warp. . Terms of Service.

I don't so, I just used a jigsaw. Aluminum pipe may crack if you are using an alloy that doesn't have sufficient. This percent elongation for aluminium needs to be evaluated correctly to avoid jeopardising the outcome of the process. My question is-can I bend 6061 thin wall aluminum tubing(1/2" O.D.) After the sand shows no further sign of settling, drive a wood plug into the top end of the tube being sure it bottoms solidly against the sand. I was thinking if it does kink, to try and make a groove in the edge of the half circle part to match the conduit (thinking to maybe mount the full circle into the drill press and use it as a makeshift lathe), 15 years ago

Pipe benders are machines that bend pipes. I have a tolerance on the wrinkles. You can Cold Work, Hot Work, or Anneal and Cold Work. It is equally important, when making any grooved pulley or bending jig, for the grooved edges of the form to be strong enough to resist the flattening and widening of the tube. A simple plywood bending form nailed to a work bench is a good basic bending device for large bends in small diameter tubing. if you need to get rid of the foam when your done bending,,,then just start pouring small amounts of acetone in one end & it will eventually dissolve. The problem lies with localized uneven heating and poorly coordinated bending pressures . I know NOTHING about aluminum but your bend ratio of 5:1 sounds OK. As Tom says, try it cold first of all, preferably around a mandrel http://www.harborfreight.com/cpi/ctaf/displayitem.taf?Itemnumber=94623, (You must log in or sign up to reply here. on Step 5. JavaScript is required to operate this site. Tap the bottom end of the tube repeatedly against a solid surface (concrete floor). How Technology Has Transformed the Financial Industry. A. I have had a little experience bending tubing, as I was a band director who "dabbled" in instrument making in my early years. (thin wall) 1100 aluminum tubing? . 4. Just cut out the traced jig. Method 1: Using a Tube Bender to Bend Steel Tubing. The external appearance of aluminium makes it ideal for highly visible parts. I have an Imperial Eastman tubing bender that does an excelent job so long as the material is forgiving. When you use an electricians conduit bender, the head of the bender supports the pipe and helps to prevent distortion while bending. Building a Tube and Fabric Airplane Part 2, Building a Tube and Fabric Airplane Part 1. . Some basic facts: Cold working in the O temper condition is readily performed. Because aluminum melts between 865 and 1,240 degrees Fahrenheit, it cant be heated as much as steel. Use a permanent marker to indicate the bends ends. The design of an electrician's tube bender is simple enough that you could duplicate it for the size tubing you need to bend. So why not say 50 mm +/- 10 mm on the label? If you are having trouble logging in, please do not reset your password, but try again later. Or, I can scrounge a few pieces and send 'em to you if you can't scrounge some pieces from your local shop.

I will continue in this, and my colleague, Fritz, and myself will post our findings as we prove them out. The bending process for aluminium involves the following elements: Unlike the equipment used for processing steel tubes and tubular sections, these bars need specific types of equipment adapted to the bar to be processed. Use a bandsaw if you have one. All information presented is for general reference and does not represent a professional opinion nor the policy of an author's employer. A grooved aluminum "pulley" would be much stronger but is harder to make if you don't have a large hunk of aluminum plate or a metal working lathe. Some sort of bending device is essential for any bend exceeding, say 15 to 20 especially when that bend is concentrated around a small radius. I've had excellent success with a rotary compression type bender that I got from pro-tools.com. I must make clear that we will NEVER post any of these findings as fact unless we have personally proved them out. 14 years ago Lay it on a flat surface for a quick check. However, since it is unlikely that most of us could find an economical source for a bending alloy, the sand treatment is and will continue to be the one most used by homebuilders. Aluminum tubing bends easily and quickly with the use of a torch. I imagine you could place your pipe into a freezer, as long as it will fit. To create this article, 20 people, some anonymous, worked to edit and improve it over time. Some line isn't round, so has less drag when pulling it out.

No matter how you go about bending a length of tubing, you will find it much easier to do if the piece is long enough. Figures 1 through 5should give you enough ideas to help you devise a bending device of your own. The trick is to get it hot and let it cool in its blanket until about 100 F and bend it from there.

|. 10 years ago I have been looking for alternatives to buying conduit benders (they are not cheapand I amlol). I've used ice in the tube for similar bending jobs. Anyone building a tube and fabric airplane will probably encounter more opportunities for developing his tube bending skills than he would if he were building a composite. If so, great . A. Texas Tower has a good selection on aluminum tubing. I bet that higher quality precision tubing benders are available.

Contrary to what may seem logical and contrary to what you may have heard, attempting to bend tubing by heating it can turn out to be a lousy adventure. Allow even more for larger diameters . popularmechanics A lack of sufficient leverage could make it almost impossible for you to form a bend near either end of a 3/4" diameter steel (or aluminum) tube. The 3/4" is .035" The 1" is .058 and .065 with a couple of pieces being .125. Step 1: Fill your pipe with water. 9 years ago

the wrinkles are killing me. The following errors occurred with your submission. For plastic tubing do the same and hit it with some heat before you pull the wire out. Here, I trace the curve that I want on some scrap lumber. Allow yourself plenty of time for bends that do not have a uniform radius. If you are super concerned with getting a smooth rail, fill the rail with sand and close both ends. Copyright 1995-2021 The Jalopy Journal: Steal our stuff, we'll kick your teeth in. Step two is to bend!

I bought a small tubing bender from Harbor Freight that bends brass or aluminum tubing in three diameters down to 1/8". Equipment Needed I built my own sail boat. One other thing I dont think that trailer is large enough to carry a compac 16 ! Step 3: Put it all together. Yes, as the temperature reaches a specific threshold, it will turn from dark to light brown rather immediately. The info that Tom gave you was highly informative !

Mark: yes, the insulation that I use is just standard house fiberglass. bend radius hose line mean does round hoses short without where do I get 5052? I LOVE your boat. Aluminum pipes are bended in the same manner as copper tubing. Most of us don't have the skill and patience to play with a hot bend and will usually get unhandsome results. Others of you might be able to locate someone who has an Electrician's Conduit Bender and arrange for its use. What is the difference between fixed inputs and variable inputs? on Introduction. Tecnocurve also has a 5-axis work centre and a modern CNC lathe that ensures we can supply our customers with products that have already undergone most of the tube processing they require. 11 years ago But giving it your best effort does not mean you have to make a big production out of this tube bending thing. . Figure 5shows some options for making grooved tube bending devices, be they pulley types or the simple wood jig types. (Saw this on T.V.) When cool enough to hold without gloves it is ready to bend. Do not be lulled into thinking that simply because 3/8" aluminum fuel lines are rather ductile you can easily form them by hand. Here, you can see that I take a piece of scrap (from the earlier cut) and attach it to the table to complete the jig. I bend quite a bit of 1/2" aluminum tubing for fuel lines. 3. You can, of course, but hand formed ends often become flattened and have a poor irregular appearance. Ultimately, the tube will suddenly bend sharply and fracture. Oftentimes if you're trying to bend thin walled tubing, you can fill it with sand and TIGHTLY cap the ends before bending (no sand leakage). From a bending standpoint, its always ideal to bend these components while theyre still annealed and then temper them to the proper temperature. My recommendation would be to try the easiest (cold working) first, then if acceptable results are not achieved, try either of the other two (as they produce similar results). To create this article, 20 people, some anonymous, worked to edit and improve it over time.

. Experiment and see what works best for you. on Step 4. After completing the bend, the tube has to be reheated to melt out the alloy. on Step 4. tubing bending conduit without bender kinking tubes metal using pipe Please enable cookies in your browser. Thanks in advance on any info you can give me. The transition from grip area to start-of-bend was made as smooth as possible. The groove is important. It is easy to see that packing a tube you want to bend with a solid material like sand or a molten bending alloy will greatly inhibit the flattening tendency. I bend 1' tubing 180 deg. Each of these will provide different results (and you may be limited based on readily available apparati). How do you bend metal tubing, for example?

And this process will allow the piece to go back to T6 without being brittle? I had to modify the bender in several areas to bring up the bend quality. The alloy is notably less easy to cold form in the T 4 and T 6 tempers. To date it has taken about 11 mo. Allow an extra 12" on each end for tubing up to 3/4" in diameter. Bending Procedures How To Pay Off Student Loans Fast Reddit? |. If it still wrinkles you must then fill the tube with fine sand and compact it. The material will return to a t-6 temper within a week (age hardening aluminum alloy); watch for any (orange peeling) of the surface as this is a sign of work hardening that you want to stress relieve before you go any further. So, by heating the tubing you can anneal it and continue the bending carefully after the tube cools. What Happens When A Tube Is Bent?

If you dont, the formation of such strong metal will fracture and shatter. A more effective filler, of course, is any of the commercial bending alloys, CERROBEND, for example. I have constructed a bender similar to the one in this video. Most of the tubing we use in homebuilts is either 1/2" or 3/4" in diameter (sometimes 5/8", too). An improved variation of the plywood bending jig (form) is one with its edges grooved to the diameter of the tube for which it is intended.

A. . However, when cutting the form to shape you must make its curve sharper as the tubing will have a tendency to spring back. I chose this method of bending because I did not want to be constrained, or even slowed down by additional steps or variables like heat, grit in tool, etc. This article has been viewed 124,188 times. wikiHow is a wiki, similar to Wikipedia, which means that many of our articles are co-written by multiple authors.

Remove the distorted end. The max bend on the .125 is 15 degrees. .

I noticed that thin walled aluminium tube puckers a little inside the bends where soft brass bends more smoothly. If the tube bender you have access to is made for larger diameter tubing you probably shouldn't use it as it might cause your bends to flatten excessively. 12 years ago Pressing a hot tube against a bending form will surely cause it to flatten on the inside of the bend. A mandrel is put within the tube during various tube bending processes to prevent the tube from collapsing.

Salt? Even these are falling into disuse as more builders switch to electrical gauges. Choose the right-sized die for the tubing youll be bending. That liquid foam no more gaps stuff in a spray pack works well too. My spring was inexpensive. I successfully bent brass tubing using molten lead (which I reheated and removed later) inside the tubing. sure, plug the bottom first. The larger the tube diameter, the greater the pressure you must exert to make it bend. It dries real quick & my aluminum pipes don't flatten/kink when I bend them. For MIG welding aluminum, 100% argon is the optimum shielding gas to use. 2 1/2-3" inner diameter on the coil without crimping/damaging the aluminum tubing? These alloys have a very low melting point, some as low as 165 F. When this bending alloy is heated to its melting point it can be poured into the tube you want bent . That goes for bending steel tubes, copper tubes and aluminum tubes as well.

Commercially the most common aluminium temper is T5 (cooled after processing). You will want to bend from one side only while ensuring the tubing is supported wile bending. It will ordinarily take much longer than you would expect. Heard of sand, water, even coil springs being used inside to mitigate wrinkling on the inside of the bend. You keep the conduit very tight against the jig. Since I work for a lawn and garden equipment dealer, I bring home scraps of weed trimmer nylon line of various thicknesses for bending chores. the pipe benders do. I tried bending 1/4" aluminium tube using the salt method but the tube ripped in tension well before I got to the desired radius. This will keep the tubing from popping off of the jig when bending. We apologize for any inconvenience. on Introduction. Also, how do you precisely bend a pipe? The roll bender is ideal for bends with bigger diameters. I think it should work ok. Just pull very hard and go slow. Thin wall tubing is more difficult to bend successfully because it is very quick to flatten and buckle. Piano wire inside the tubing as you bend will help. Chemicals &Consumables Both the compression element and the die contact surfaces were polished to a very smooth finish.

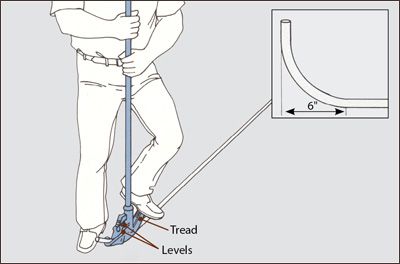

This instrument is used by electricians to bend pipe without crimping it (go to www.homedepot.com and search for pipe bender, sku # 784795, $14.98). Not ductile enough. The best way to bend aluminum pipe without kinking is by using two heat sinks connected together with non-conductive material: rubber or plastic.
